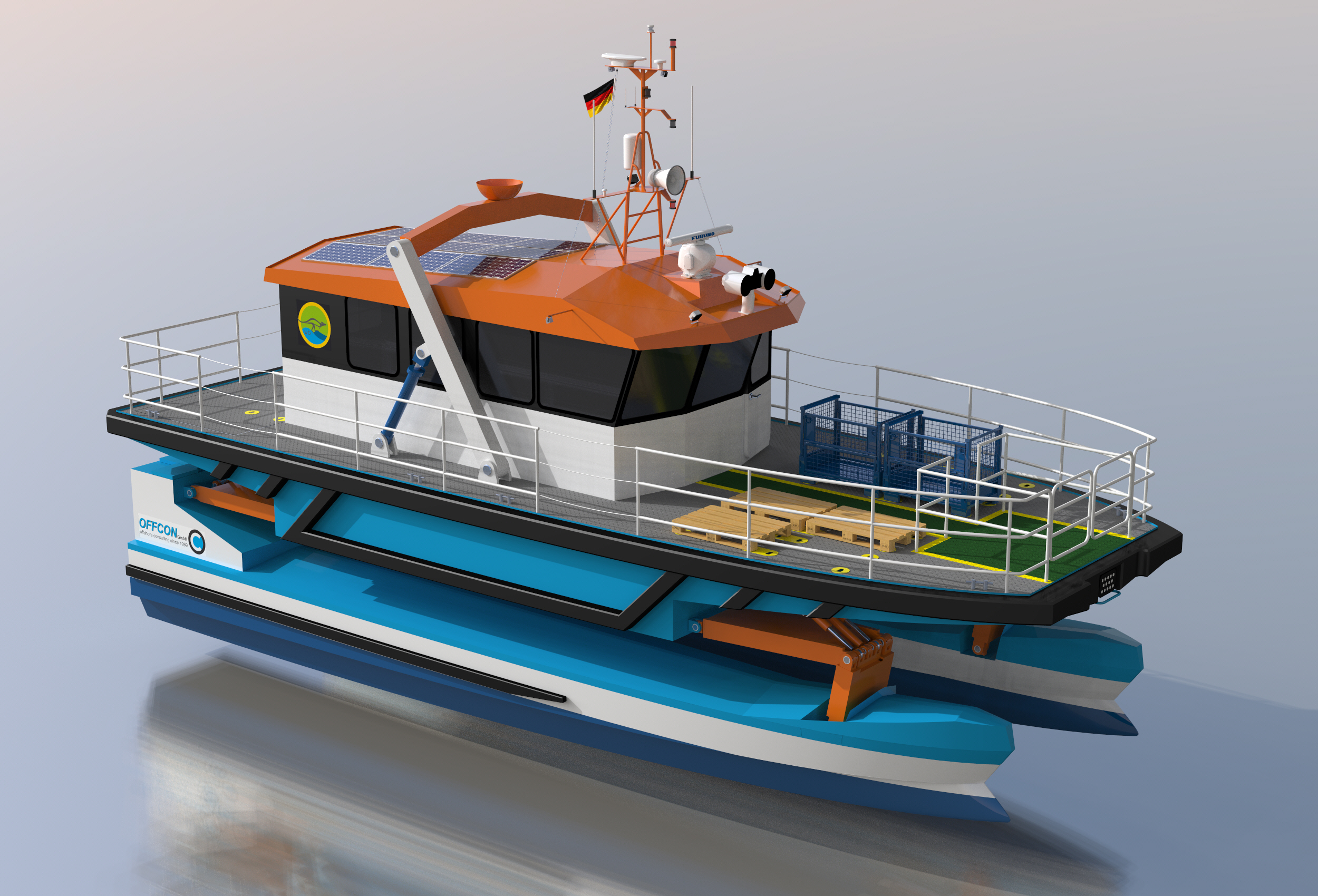

Wallaby-10

Designated daughter craft (DC) for offshore wind service vessel (OSV)

The WB-10 is a designated daughter craft (DC) for offshore wind service vessel (OSV).
Optionally it will come with a single point hoist that allows safe lifting with the designated launch and recovery system (LARS) with no manual handling on the boat and minimal personnel required on deck of the mother ship. The lifting beam is self adjusting to changes of centre of gravity (COG).
Both, the single-point hoist arrangement as well as the lifting beam are patent protected (patent pending).

Main Particulars of WB-10

LOA = 10,00 m
LWL = 9,50 m
BOA = 5,5 m (outer hulls)
B(hull) = 1,76 (each hull)
D = tbd t (estimate)

The displayed drawings do not show the latest state of development to protect our IP - updates coming soon though....

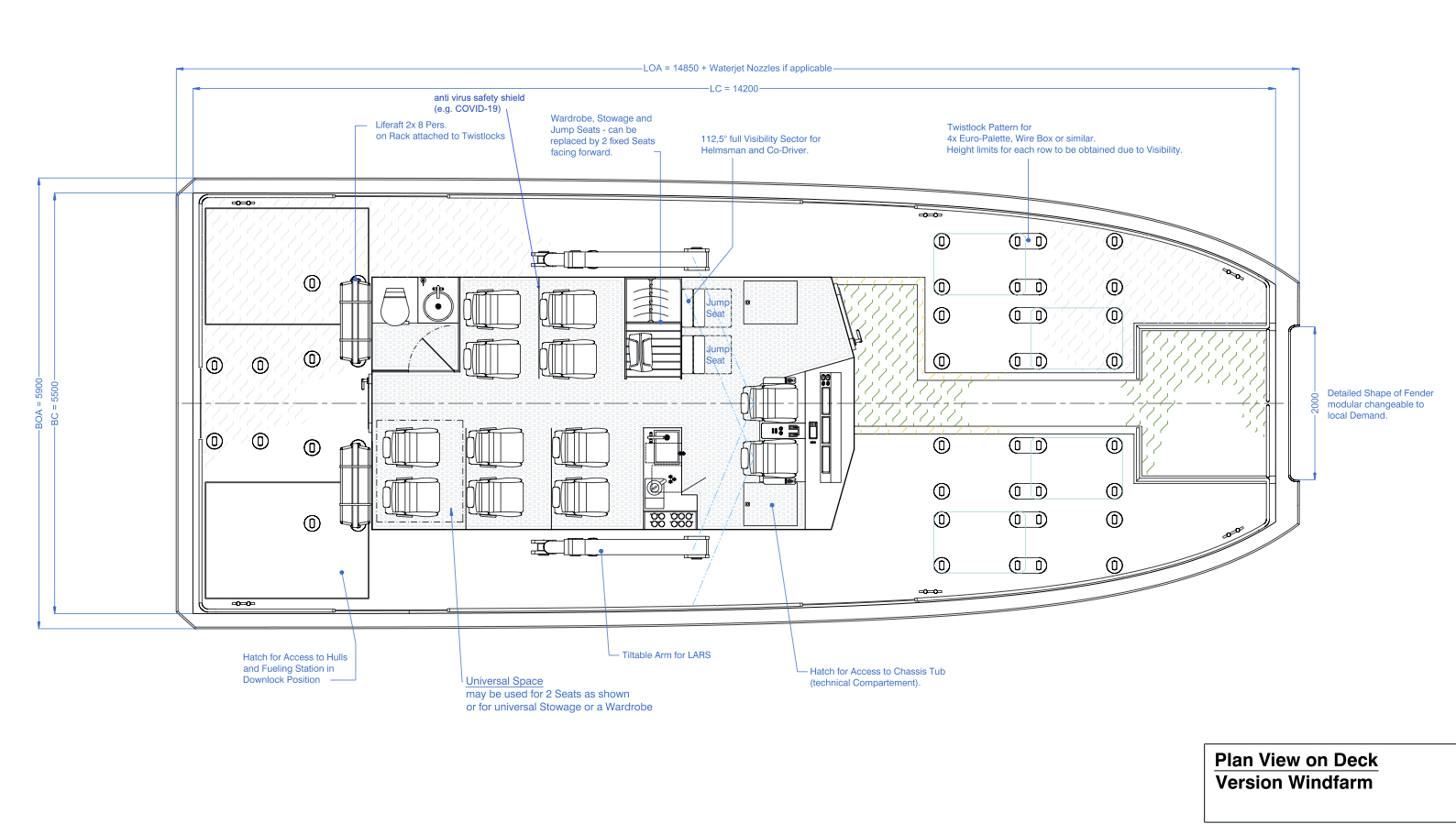

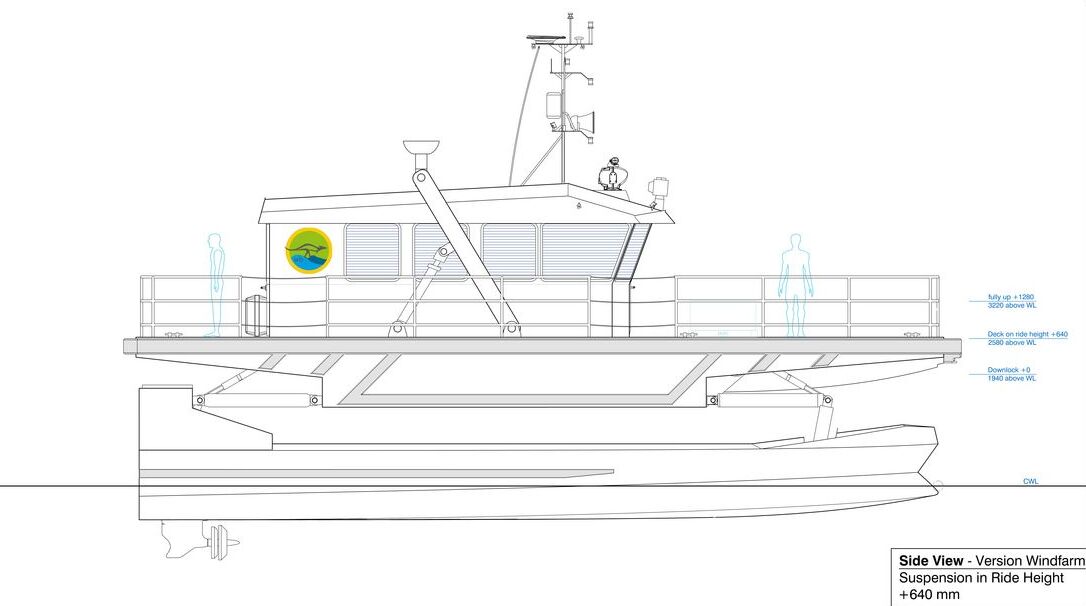

General Arrangement

The general arrangement of the WB-10 is still under development. The following drawings offer a basic idea of the final result.

The displayed drawings do not show the latest state of development to protect our IP.
